Weller Erem Distance Cutting Pliers 549E
Code: 549E
Product detailed description

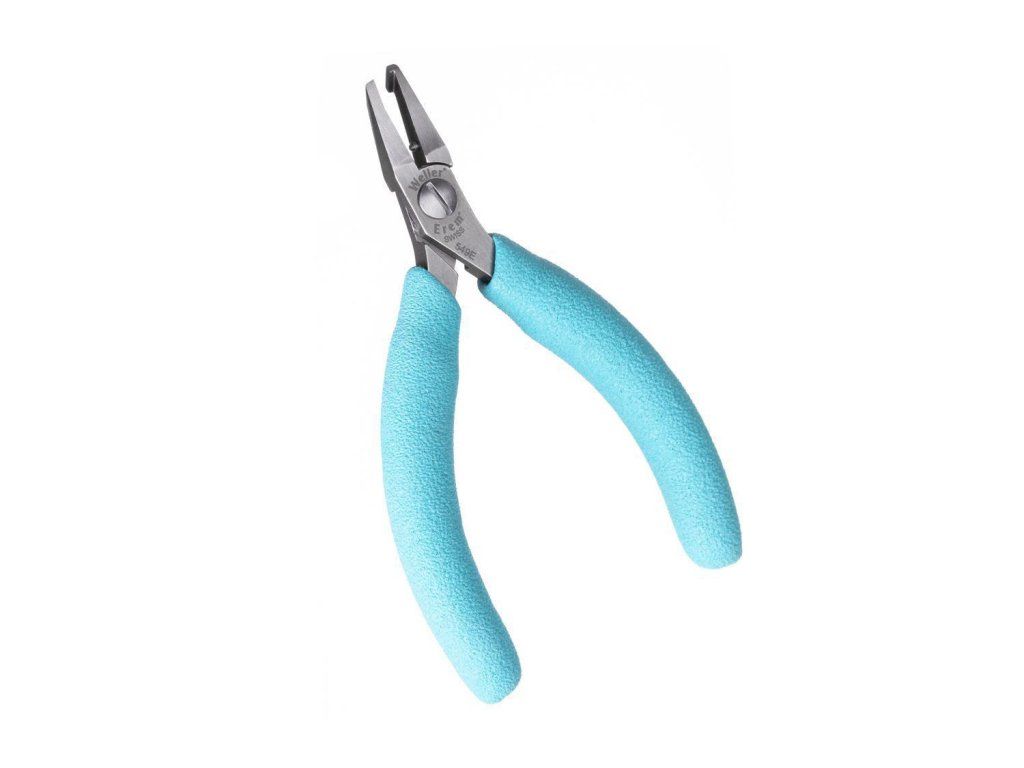

Weller Erem Distance Cutting Pliers 549E
Professional cutting pliers 549E – distance cutting pliers 549E for defined shortening of leads with adjustable stop. Precise workmanship with induction-hardened edges for long service life. For assembly work in the electronics industry, repairs and precision mechanics.
Features
- Model: 549E
- Induction-hardened edges
- For electronic assembly
- distance cutting pliers 549E for defined shortening of leads with adjustable stop
- Cut type: Standoff cutters, flush, 45°; preset cut length F=1,5 mm
- Max. wire diameter: Copper up to 1,2 mm
Use and selection
The distance cutter design trims leads with a stand-off from the board. Select the exact model for the required lead length.
The manufacturer specifies a maximum copper wire diameter of 1.19 mm. This value does not automatically apply to harder materials.
Additional parameters
| Category: | ESD Antistatic Pliers & Cutters |
|---|---|
| A [mm]: | 20,0 |
| B [mm]: | 11,0 |
| C [mm]: | 6,0 |
| Length [mm]: | 120 |
| E [mm]: | 1,5 |
| F [mm]: | 4,0 |
| Bevel: | Large bevel |
| Max Cu: | 1,2 mm |
| Pliers type: | Distance cutting pliers |
| ESD design: | yes |
| Cut type: | Flush |
