    Home / Soldering Equipment / JBC / Soldering tips / C560 / JBC C560014 – through-hole desoldering tip Ø 0.8 mm

    JBC C560014 – through-hole desoldering tip Ø 0.8 mm

    Code: C560014
    JBC C560014 – odpájecí tryska THT Ø 0,8 mm
    €26,20 / pcs €31,70 incl. VAT Measure price:
    JBC C560014: through-hole desoldering tip Ø 0.8 mm. Extracts molten solder around through-hole leads. For JBC tools DR560.

    Detailed information

    Professional ESD services for companies — consulting, audits, measurements, employee training, and complete ESD workplace implementation according to IEC 61340-5-1.

    Related products

    JBC HDE – průmyslová pájecí stanice pro C470
    JBC HDE – heavy duty soldering station for C470
    €1 335,42

    JBC HDE – heavy duty soldering station for C470. For joints with high heat dissipation, using a T470-series heavy duty handle and C470 cartridges.

    HDE
    JBC DDCT – stanice s pájecí lázní 18 × 15 mm
    JBC DDCT – solder pot station 18 × 15 mm
    €1 360,61

    JBC DDCT – solder pot station 18 × 15 mm. The T245-mounted pot tins wire ends and immerses multiple contacts in molten solder.

    DDCT
    JBC HDCT – výkonná stanice s pájecí lázní
    JBC HDCT – heavy-duty solder pot station
    €1 662,97

    JBC HDCT – heavy-duty solder pot station. The square C470SP42 pot serves wire tinning and multiple contacts requiring a larger heat reserve.

    HDCT
    JBC DI – řídicí jednotka pro 1 nástroj
    JBC DI – 1-tool control unit
    €594,64

    JBC DI – 1-tool control unit. The single-tool unit forms the basis of a modular soldering or desoldering workstation with matching accessories.

    DI
    Show all related products

    Product detailed description

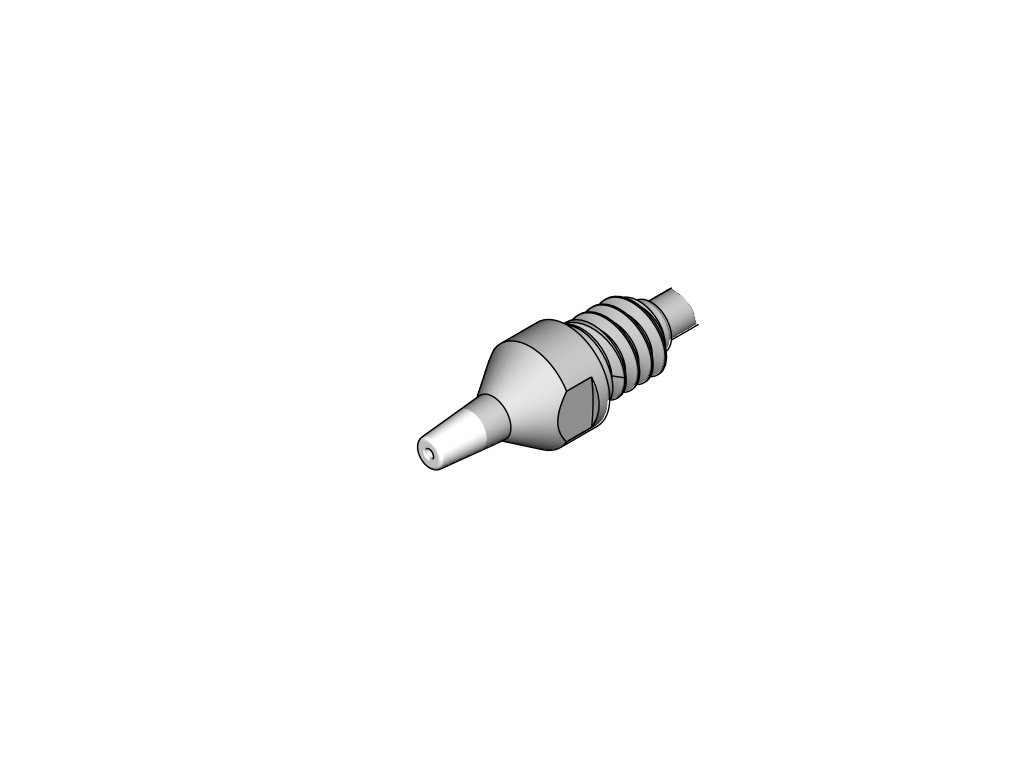

    JBC C560014 – through-hole desoldering tip Ø 0.8 mm

    Replaceable suction tip from the C560 range. For JBC tools DR560.

    Application and selection

    JBC C560014: through-hole desoldering tip Ø 0.8 mm. Extracts molten solder around through-hole leads.

    Important information

    The tip bore should leave a small clearance around the lead for effective suction and easy cleaning.

    Additional features and use

    • Long-Life technology – extremely long tip lifespan
    • Patented Sleep & Hibernate technology – fast heat-up and low wear
    • Compatibility: T560 (extra high-power soldering iron)
    • Family C560

    Additional parameters

    Category: C560
    Diameter in mm: 0.8
    Soldering tip shape: Desoldering
    Compatible tools: JBC DR560
    Maximum lead diameter: 0,6 mm
    Series: C560
    Suction bore diameter: Ø 0,8 mm
    Working-end outer diameter: 2,5 mm
