ESD Wrist Straps
The wrist strap is the most widely used and most reliable way to ground an operator — it provides constant skin contact and, through a 1 MΩ safety resistor, safely dissipates charge to ground. Without a wrist strap or another grounding method, the requirements of IEC 61340-5-1 cannot be met.
How to choose the right type: A fixed wrist strap with a 1.8 m cord is the standard for seated work at an ESD bench — the cheapest and most reliable option, suitable for most service and assembly workplaces. An adjustable strap with various cord lengths is ideal for standing work or where greater freedom of movement is needed. A wireless wrist strap with a monitor and alarm is the solution for workplaces where a cord gets in the way, where there is a risk of the cord catching on machinery, or where the standard requires continuous contact logging for audits. A replacement cord without the strap is needed when the existing cord is damaged.
We offer fixed, adjustable and wireless versions with monitoring, plus testing devices for regular checks and spare cords and accessories.
Regular functional verification is a mandatory part of EPA zone management — contact us to select a suitable solution or to order a tester.
Product sorting
List of products
Classic uninsulated alligator clip for connecting grounding cables and measurement leads.
Classic fabric antistatic wrist strap SI-104 with conductive thread and snap for connection to grounding cable. For daily use in EPA.
Fabric antistatic wrist strap SI-105 with conductive thread and snap. Practical for daily use at ESD workstations.
Lightweight plastic antistatic wrist strap with 10 mm snap. Affordable solution for common EPA applications.
Robust metal antistatic wrist strap with 10 mm snap. Highest level of conductivity and durability, suitable for more demanding applications.
Professional thermoplastic wrist strap 3M type 4620 with 10 mm snap. High 3M quality, compatible with standard 10 mm grounding cables.
Dual wrist strap with two independent conductive paths for increased safety. For applications where grounding redundancy is required.
Professional thermoplastic wrist strap 3M type 4620 with 3 mm snap. High 3M brand quality, suitable for demanding ESD applications.
Special grounding cable for dual wrist straps with two independent conductive paths. Higher safety with separate connection of each path.

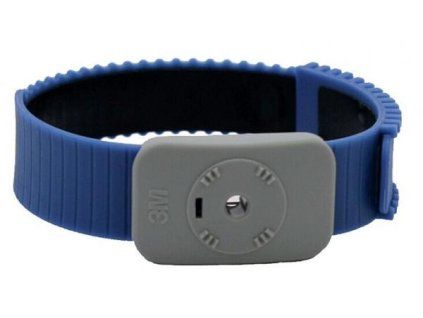

Professional dual thermoplastic wrist strap 3M in blue color. Highest level of reliability with dual grounding.

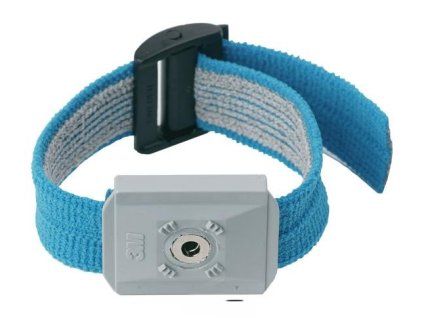

Dual fabric wrist strap 3M in turquoise color. More comfortable wear and dual conductive layer for higher reliability.
