    Home / Soldering Equipment / QUICK / Soldering tips / Robotic tips 911 / QUICK 911G-16D Soldering Tip

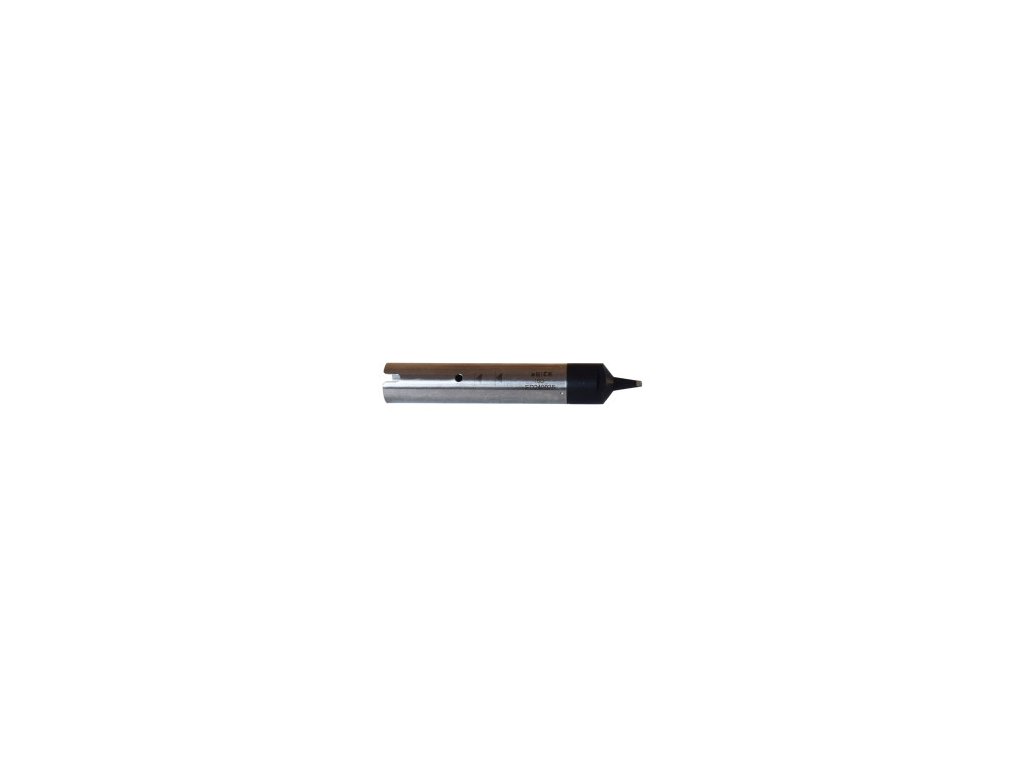

    QUICK 911G-16D Soldering Tip

    Code: QK-911G16D
    Pájecí hrot QUICK 911G-16D
    €6,45 / pcs €7,80 incl. VAT Measure price:
    911G-16D tip – universal 1.6 mm chisel for robotic THT and SMD soldering.

    Detailed information

    Professional ESD services for companies — consulting, audits, measurements, employee training, and complete ESD workplace implementation according to IEC 61340-5-1.

    Related products

    QUICK ET9181 Jednoosý pájecí poloautomat
    QUICK ET9181 Single-Axis Soldering Semi-Robot
    €1 450,19

    Single-axis soldering semi-robot QUICK ET9181 for precise manual applications. 911G/911B tips.

    QK-ET9181

    Product detailed description

    QUICK 911G-16D Soldering Tip

    1.6 mm chisel is the most universal tip for robotic soldering of the 911G series. Reliably handles through-hole with 2.54 and 1.27 mm pitch, SMD pads 0805 and larger, and standard connector leads. The straight D profile provides maximum heat transfer at perpendicular contact with the solder pad, which is the typical position of the robotic soldering head.

    Compatibility

    QUICK ET9181 semi-automat and compatible 911 series soldering robots

    Use and selection

    Tip width: 1.6 mm.

    When replacing a tip, match the exact designation to the soldering iron documentation. Choose the working face shape and size to suit the joint.

    Additional parameters

    Category: Tips for Robotic Soldering 911
    Tip width: 1.6
    Soldering tip shape: Chisel
    Model: 911G-16D
