Warmbier Audit Kit B530 – Complete ESD Audit Kit

Product detailed description

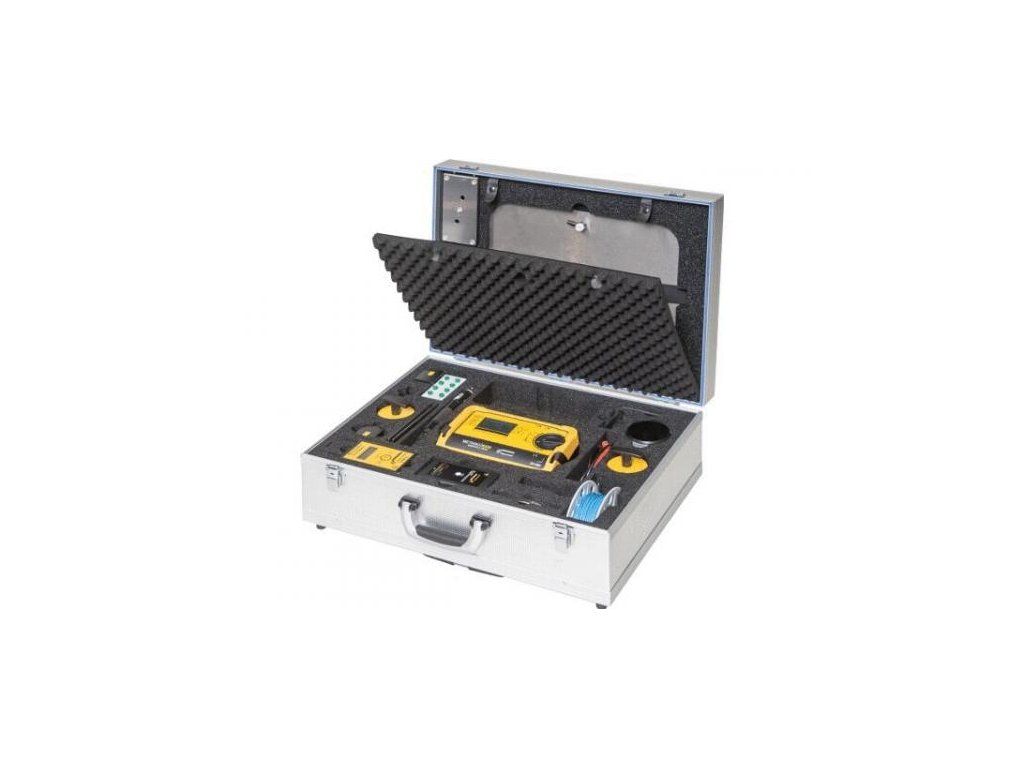

Warmbier Audit Kit B530 – Complete ESD Audit Kit

An affordable complete B530 audit kit containing the Metriso B530 meter, measuring electrodes and the accessories required to perform ESD audits. A cost-effective alternative to the Audit Kit Metriso 3000.

Scope of delivery

• 7100.B530.G* – Metriso B530 Basic with test leads
• 7110.600 – ESD audit case (external dimensions 575 × 490 × 250 mm, empty weight 7 kg)
• 7220.450 – hand electrode model 450
• 7220.840* – two-point electrode model 840 (Mini-Probe)
• 7220.880* – ring electrode model 880
• 7100.SRM110* – SRM110 surface resistance tester
• 7100.EFM51.WT* – EFM51 electrostatic field meter with Walking Test measuring head and stand
• 7100.WT5000.ML – measuring cable for the Walking Test
• 7100.EFM51.CPS – Charged Plate Set with charge plate and ±1200 V high-voltage generator
• 2200.110.Y – grounding module
• 7110.E8.Y – 8-way grounding distributor with Schuko dummy plug
• 7100.2000.TR50 – 50 m cable reel
• 7100.PGT100.102 – metal plate, 400 × 300 × 2 mm
• 2287.10.10 – 10 mm banana plug adapter
• 7220.880.6 – insulating plastic plate, 120 × 160 × 6 mm
• 7220.880.9 – stainless-steel counter electrode, diameter 120 mm
• 7220.880.L – blue guard cable, 1.5 m
• 7100.TF530 – TF-530 digital thermo-hygrometer
• 7220.850 (2 pcs) – measuring electrode model 850

* Devices marked with an asterisk are supplied with a factory calibration certificate.

Case design

• lockable aluminium case
• detachable wheeled trolley
• conductive foam insert
• ESD marking

Applications

• testing flooring systems in accordance with DIN EN 61340-4-1 and DIN EN 61340-4-5
• testing ESD chairs, workstations, shelving, trolleys and production equipment in accordance with DIN EN 61340-2-3
• measuring surface resistance and testing packaging materials
• measuring electrostatic fields and verifying ioniser effectiveness in accordance with IEC 61340-4-7
