Weller Erem Side Cutters 792E
Code: 792E
Product detailed description

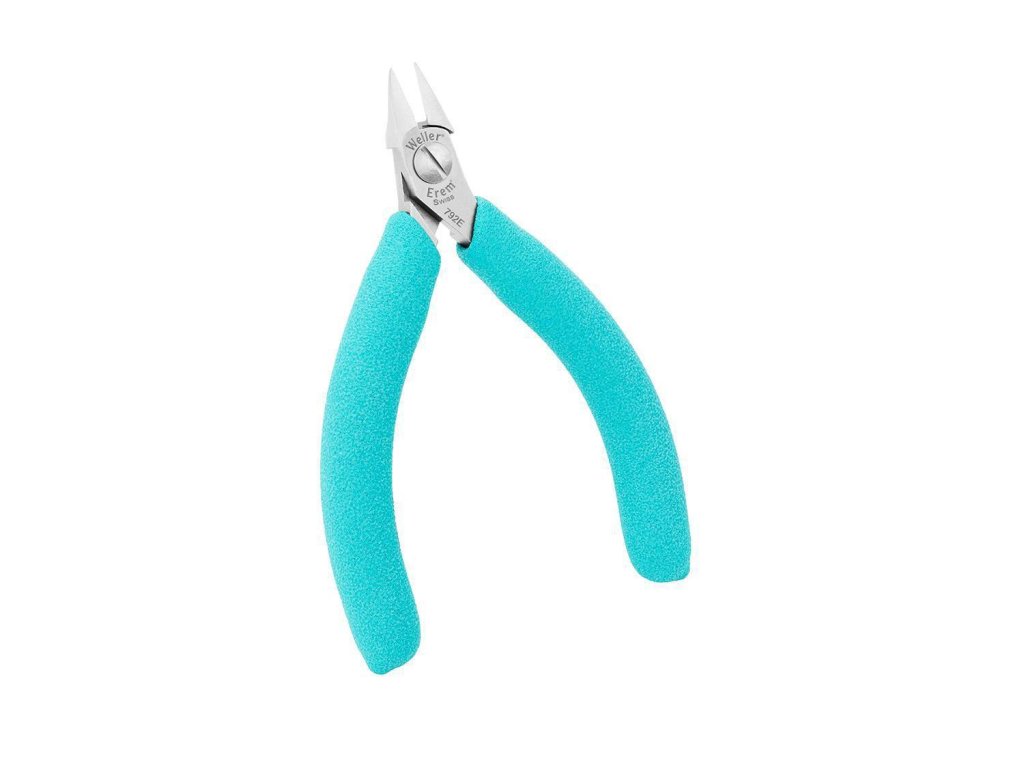

Weller Erem Side Cutters 792E
Professional cutting pliers 792E – side cutters 792E for more demanding thicker wires and components. Precise workmanship with induction-hardened edges for long service life. For assembly work in the electronics industry, repairs and precision mechanics.
Features
- Model: 792E
- Induction-hardened edges
- For electronic assembly
- side cutters 792E for more demanding thicker wires and components
- Cut type: Tip cutters, super full flush, relieved head
- Max. wire diameter: Copper up to 0,6 mm; medium-hard wire 0,4 mm
Use and selection
Choose according to head shape, cut type and the material of the wire.
The manufacturer specifies a maximum copper wire diameter of 0.58 mm. This value does not automatically apply to harder materials.
Additional parameters
| Category: | ESD Antistatic Pliers & Cutters |
|---|---|

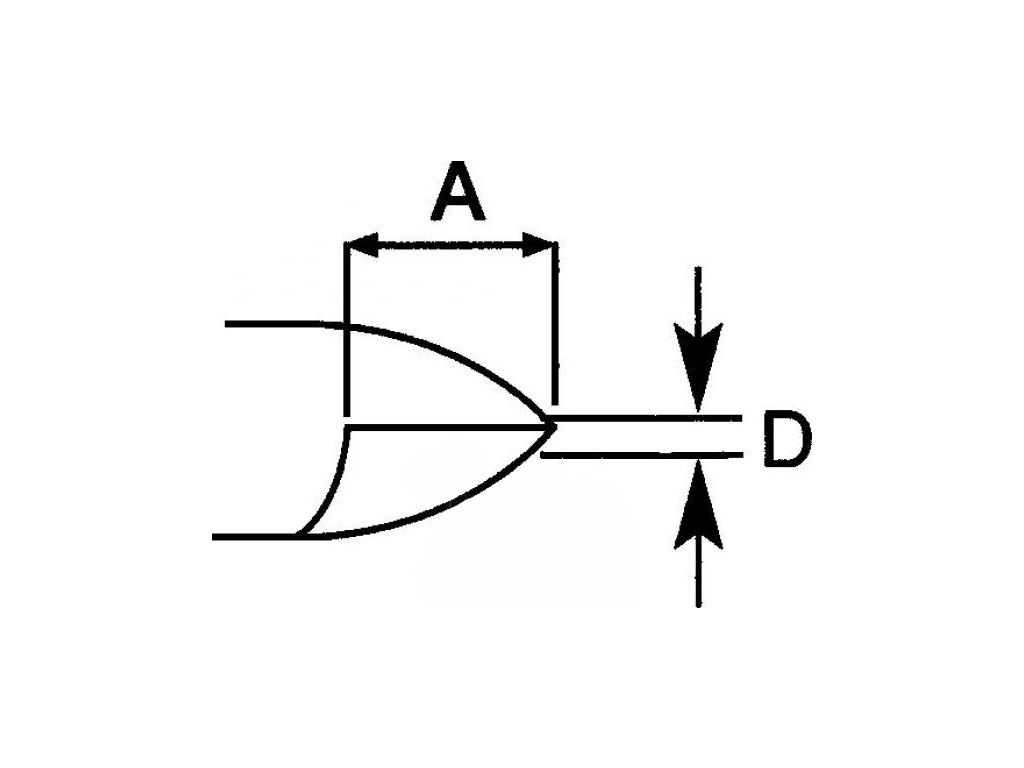

| A [mm]: | 12,0 |
| B [mm]: | 11,0 |
| C [mm]: | 6,0 |
| D [mm]: | 19,0 |
| Length [mm]: | 115 |
| Bevel: | Recessed cut |
| Max Cu: | 0,6 mm |
| Pliers type: | Side cutting pliers |
| ESD design: | yes |
| Cut type: | Super Full-Flush |
