    Home / ESD Measuring Instruments / ESD combo testers / Combo Tester X3 – ESD Wrist Strap and Footwear Tester

    Combo Tester X3 – ESD Wrist Strap and Footwear Tester

    Code: 19270
    Combo tester X3 – ESD tester náramků a obuvi
    €1 408,43 / pcs €1 704,20 incl. VAT Measure price:
    ESD Combo tester X3 for measuring wrist straps and footwear. Test result is indicated visually and acoustically.

    Detailed information

    Professional ESD services for companies — consulting, audits, measurements, employee training, and complete ESD workplace implementation according to IEC 61340-5-1.

    Related products

    Náběžná hrana pro skládanou ESD puzzle podlahu – žlutá
    Edge Ramp for Interlocking ESD Puzzle Floor – Yellow
    €10,08

    Yellow edge ramp for the interlocking ESD puzzle floor, dimensions 510 × 145 mm, 8 mm thick. Easy assembly and disassembly.

    F2025

    Product detailed description

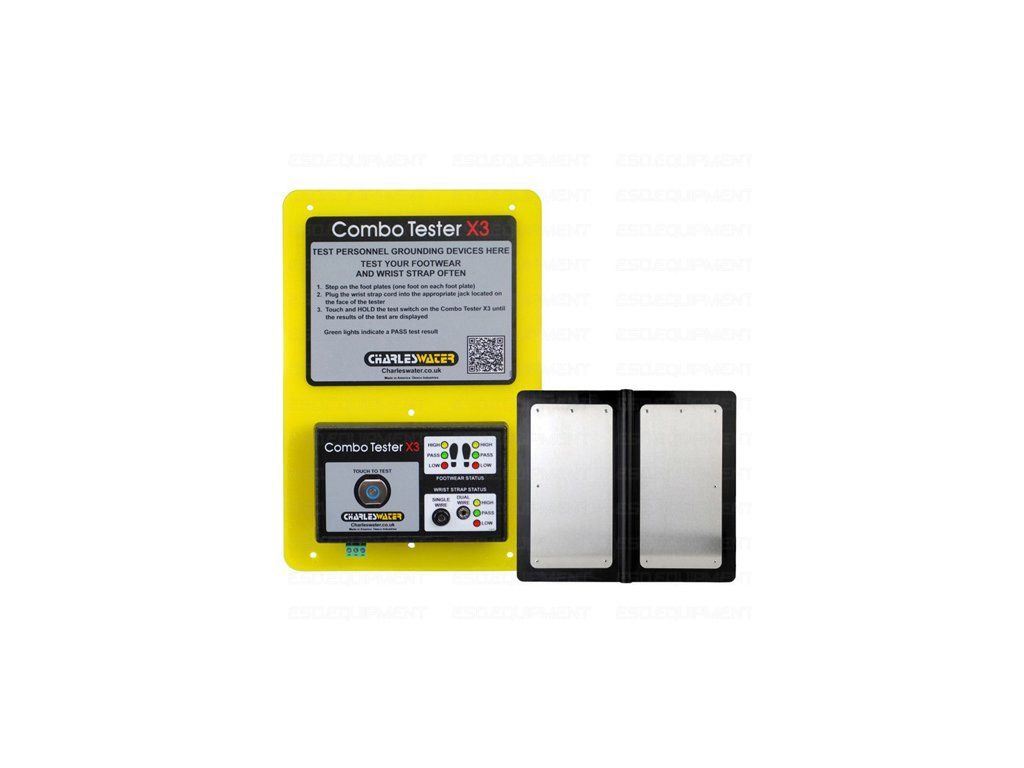

    Combo Tester X3 – ESD Wrist Strap and Footwear Tester

    ESD tester X3 is used for measuring ESD wrist straps and footwear. The test result is indicated both visually (LED) and acoustically (tone on PASS) – for comfortable operation and hands-free mode.

    Features

    • Test of ESD wrist straps and footwear
    • LED + acoustic result indication
    • Hands-free operation
    • For EPA area entrance
    • Complies with EN 61340-5-1
    • Test limits: Wrist strap: 750 kΩ – 10 MΩ; footwear: 750 kΩ – 35 MΩ
    • Test voltage: 30 V
    • Power supply: Power adapter 100-240 VAC (interchangeable plugs)

    Additional parameters

    Category: ESD Combo Testers — Wrist & Footwear
    Model / series: 19270
