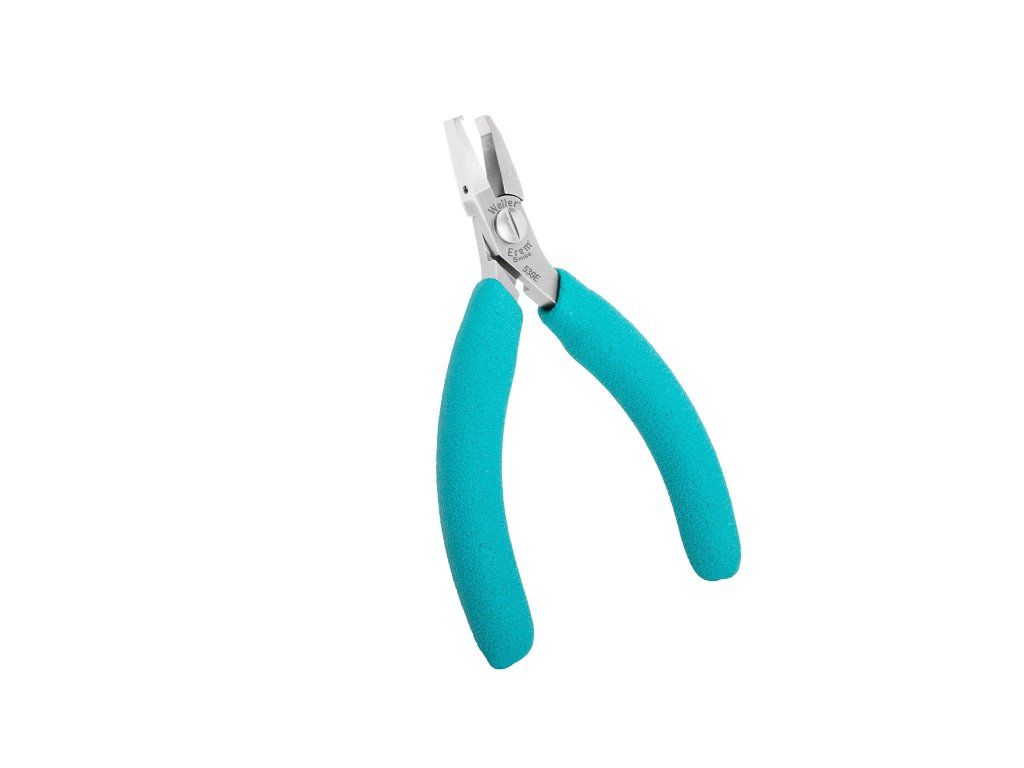

Weller Erem Distance Cutting Pliers 530E08
Code: 530E08
Product detailed description
Weller Erem Distance Cutting Pliers 530E08
Professional cutting pliers 530E08 – distance cutting pliers 530E08 for defined shortening of leads to 0,8 mm height. Precise workmanship with induction-hardened edges for long service life. For assembly work in the electronics industry, repairs and precision mechanics.
Features
- Model: 530E08
- Induction-hardened edges
- For electronic assembly
- distance cutting pliers 530E08 for defined shortening of leads to 0,8 mm height
- Cut type: Standoff cutters, flush; preset cut length F=0,8 mm
- Max. wire diameter: Copper up to 1,2 mm
Use and selection
The distance cutter design trims leads with a stand-off from the board. Select the exact model for the required lead length.
Additional parameters
| Category: | ESD Antistatic Pliers & Cutters |
|---|---|
| A [mm]: | 20,0 |
| B [mm]: | 11,0 |
| C [mm]: | 6,0 |
| Length [mm]: | 120 |
| E [mm]: | 0,8 |
| F [mm]: | 3,0 |
| Bevel: | Large bevel |
| Max Cu: | 1,2 mm |
| Pliers type: | Distance cutting pliers |
| ESD design: | yes |
| Cut type: | Flush |
