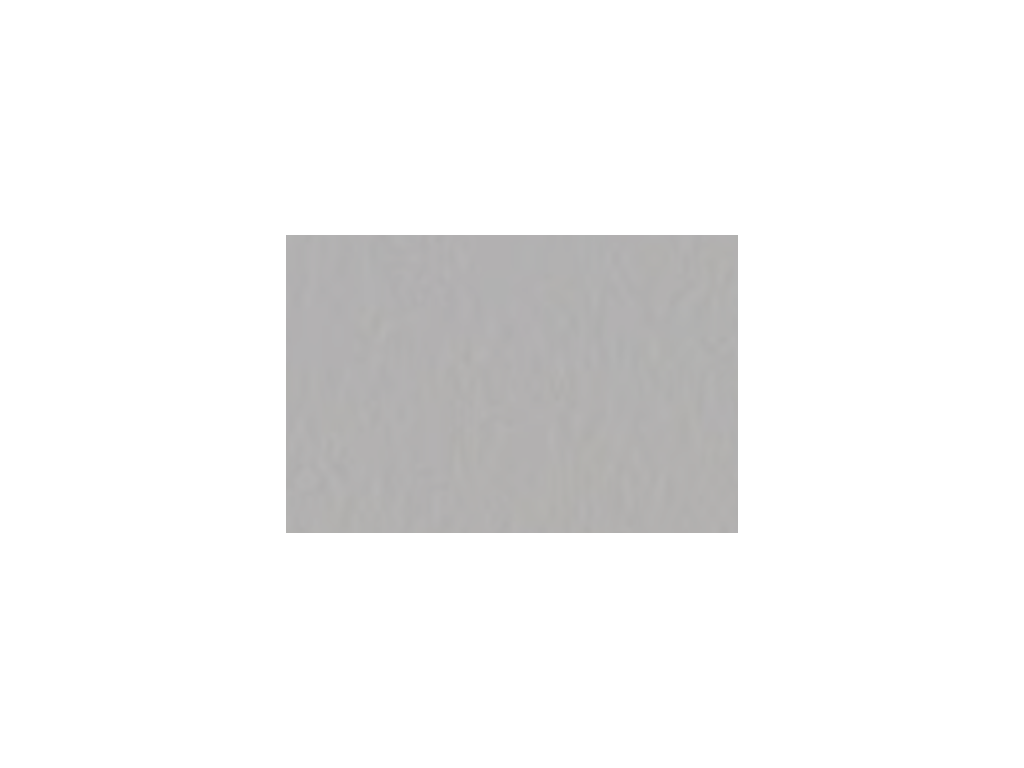

Fatra Garis HSD – Dissipative PVC Flooring in Rolls
Code: GARIS-HSD-203-2
Color: 203-2
| GARIS-HSD-203-2
€372,51
/ pcs
€450,73
incl. VAT
Color: 277-2
| GARIS-HSD-277-2
€372,51
/ pcs
€450,73
incl. VAT
Color: 295-2
| GARIS-HSD-295-2
€372,51
/ pcs
€450,73
incl. VAT
Color: 881
| GARIS-HSD-881
€372,51
/ pcs
€450,73
incl. VAT
Color: 952
| GARIS-HSD-952
€372,51
/ pcs
€450,73
incl. VAT
Color: 203-2 UNI
| GARIS-HSD-203-2-UNI
€372,51
/ pcs
€450,73
incl. VAT
Color: 277-2 UNI
| GARIS-HSD-277-2-UNI
€372,51
/ pcs
€450,73
incl. VAT
Color: 295-2 UNI
| GARIS-HSD-295-2-UNI
€372,51
/ pcs
€450,73
incl. VAT
Color: 881 UNI
| GARIS-HSD-881-UNI
€372,51
/ pcs
€450,73
incl. VAT
Color: 952 UNI
| GARIS-HSD-952-UNI
€372,51
/ pcs
€450,73
incl. VAT
Product detailed description
Fatra Garis HSD – Static Dissipative Homogeneous PVC Flooring
Fatra Garis HSD flooring is designed for areas requiring the dissipation of electrostatic charges (ESD). Thanks to its volume resistance of ≤ 1·10⁸ Ω, it meets the requirements of EN 1081 for dissipative flooring.
Applications
- Electronics manufacturing areas (EPA workstations) per EN 61340-5-1
- Server rooms and data centres
- Laboratories and inspection workstations
- Operating theatres and cleanrooms
- Pharmaceutical industry and other ESD-protected areas
Technical Specifications
| Type | Homogeneous PVC, dissipative |
| Thickness | 2.0 mm |
| Roll width | 2.0 m |
| Roll length | 12 m |
| Roll area | 24 m² |
| Weight | 3.05 kg/m² |
| Load class | 23 / 34 / 43 |
| Volume resistance | ≤ 1·10⁸ Ω (dissipative) |
| Reaction to fire | Bfl-s1 |
| Residual indentation | ≤ 0.10 mm |
| Colourfastness | ≥ 6 |
| Designs | Directional (marbled) or uni-colour (UNI) |
| Colours | 203-2, 277-2, 295-2, 881, 952 |
Price per roll (24 m²). Also available in 608×608 mm tile format.
