    QUICK NK3126 Hot Air Nozzle

    Code: QK-NK3126
    Horkovzdušná tryska QUICK NK3126
    €29,91 / pcs €36,19 incl. VAT Measure price:
    Shaped QUICK NK3126 QFP nozzle 14 × 14 mm for LQFP-48 and TQFP-44 MCUs.

    Detailed information

    Professional ESD services for companies — consulting, audits, measurements, employee training, and complete ESD workplace implementation according to IEC 61340-5-1.

    Related products

    QUICK 709D+ Kombinovaná pájecí + horkovzdušná stanice
    QUICK 709D+ Combined Soldering + Hot Air Station
    €144,49

    Combined soldering + hot air station QUICK 709D+. Magnetic iron rest sensor.

    QK-709D
    Horkovzdušná pájecí stanice QUICK 861PRO – 700 W
    QUICK 861PRO – hot air rework station 1300 W
    €342,67

    Professional QUICK 861PRO hot air station 700 W for SMD rework.

    QK-861PRO

    Product detailed description

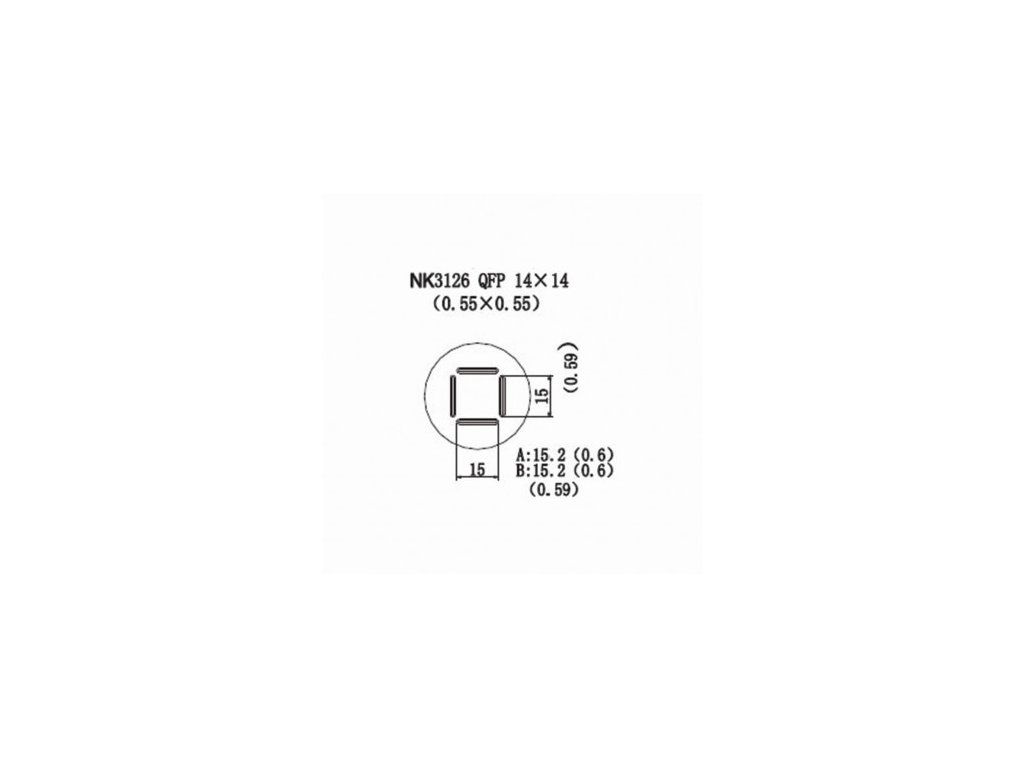

    QUICK NK3126 Hot Air Nozzle

    Shaped nozzle for QFP packages with 14 × 14 mm body. Typically covers LQFP-48 or TQFP-44 with 0.5–0.65 mm lead pitch used in 8/16-bit microcontrollers (STM32, Renesas). The frame air output evenly heats all four lead rows simultaneously for clean simultaneous separation of the entire package from the PCB. The shaped NK nozzle encloses leads from all four sides for even heating.

    Compatibility

    QUICK hot air stations TR1300, 855PG (NK series, IC-shaped)

    Use and selection

    Check the attachment to the handpiece and the working area dimensions. A similar component package designation alone does not establish mechanical compatibility with a station.

    Additional parameters

    Category: Hot Air Nozzles
    Diameter in mm: 14 x 14
    Soldering tip shape: QFP
    Component package: QFP
    Model: NK3126
    Nozzle dimensions: 14 × 14 mm
