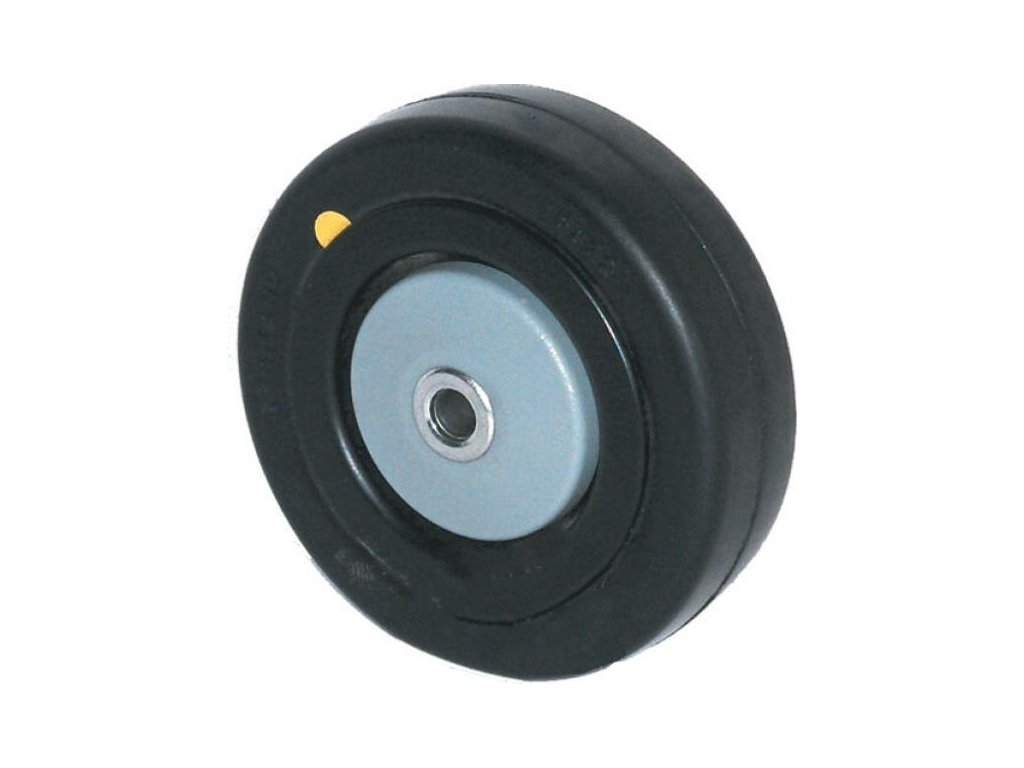

    ESD wheel 502.100.EL, 100 mm

    Code: 502.100.EL
    Kolo pro ESD zařízení – 100 mm, nosnost 65 kg
    €15,88 / pcs €19,21 incl. VAT Measure price:
    Castor for ESD Equipment – 100 mm, Load Capacity 65 kg. Standard ESD castor diameter 100 mm with load capacity 65 kg.

    Detailed information

    Professional ESD services for companies — consulting, audits, measurements, employee training, and complete ESD workplace implementation according to IEC 61340-5-1.

    Product detailed description

    ESD wheel 502.100.EL, 100 mm

    Castor for ESD Equipment – 100 mm, Load Capacity 65 kg. Standard ESD castor diameter 100 mm with load capacity 65 kg. ESD castor with conductive construction for static discharge when moving equipment in EPA.

    Features

    • ESD/conductive castor
    • For EPA equipment
    • Static discharge
    • Complies with EN 61340-5-1

    Use and selection

    Wheel width: 23 mm.

    Compare the wheel diameter, overall height and mounting dimensions with the existing assembly. Charge dissipation also depends on the conductive connection to the frame and a suitable floor.

    Additional parameters

    Category: ESD Castor Wheels
    Color: black
    Center length [mm]: 29
    Load capacity: 65 kg
    Wheel opening [mm]: 8
    Tread surface: Rubber
    Design: wheel, without bracket
    Wheel design: Wheel for equipment
    Wheel diameter [mm]: 100
    Shore hardness: 85 Shore A
    Wheel center: Polypropylene
    Wheel width [mm]: 23
    Conductivity: conductive
