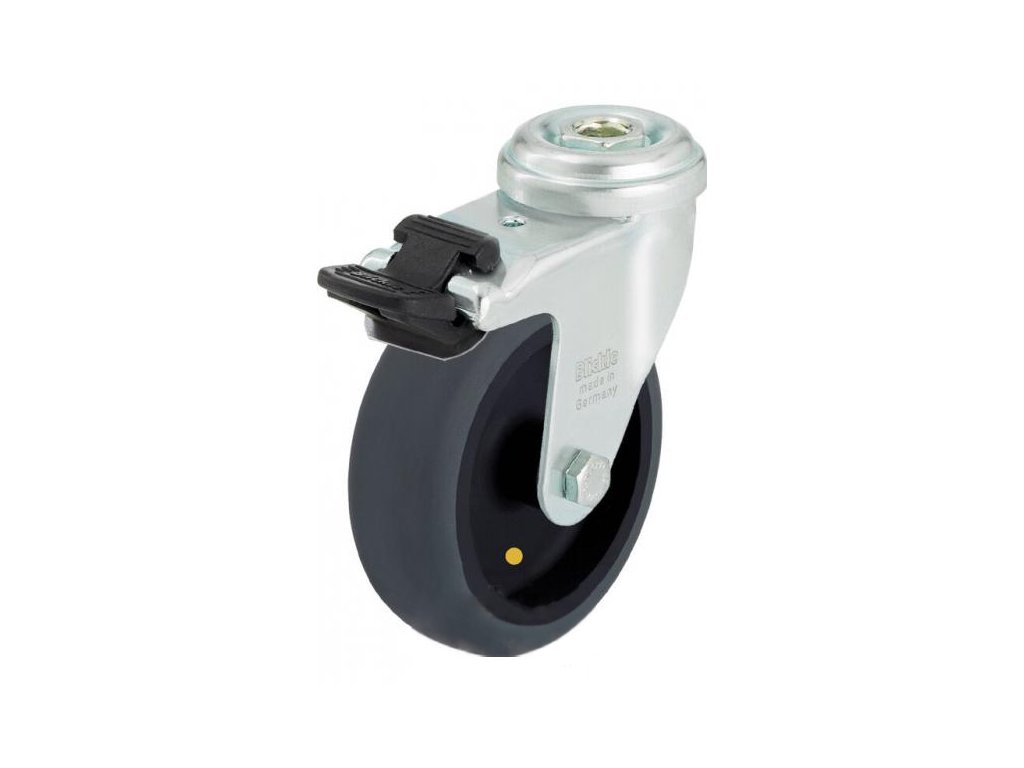

ESD swivel castor 604.075.SF.ELS, 75 mm
Code: 604.075.SF.ELS
Product detailed description
ESD swivel castor 604.075.SF.ELS, 75 mm
Castor for ESD Equipment with Mounting Plate – "stop-fix" 75 mm, 75 kg. ESD castor with mounting plate stop-fix 75 mm 75 kg.
Features
- ESD castor
- For EPA
- Complies with EN 61340-5-1
Use and selection
Overall height: 100 mm. Wheel width: 25 mm.
Compare the wheel diameter, overall height and mounting dimensions with the existing assembly. Charge dissipation also depends on the conductive connection to the frame and a suitable floor.
Additional parameters
| Category: | ESD Castor Wheels |
|---|---|
| Color: | black |
| Total height [mm]: | 100 |
| Cover: | Steel sheet |
| Load capacity: | 75 kg |
| Tread surface: | Rubber, thermoplastic |
| Design: | With mounting plate, with brake |
| Wheel design: | Swivel wheel, non-marking |
| Wheel diameter [mm]: | 75 |
| Screw holes pitch [mm]: | 48 x 48 |
| Shore hardness: | 85 Shore A |
| Wheel center: | Polypropylene |
| Wheel width [mm]: | 25 |
| Board size [mm]: | 60 x 60 |
| Hole size [mm]: | 6,2 |
| Conductivity: | conductive |
| Mounting plate: | 60 x 60 mm |
| Bolt hole diameter: | 6,2 mm |
