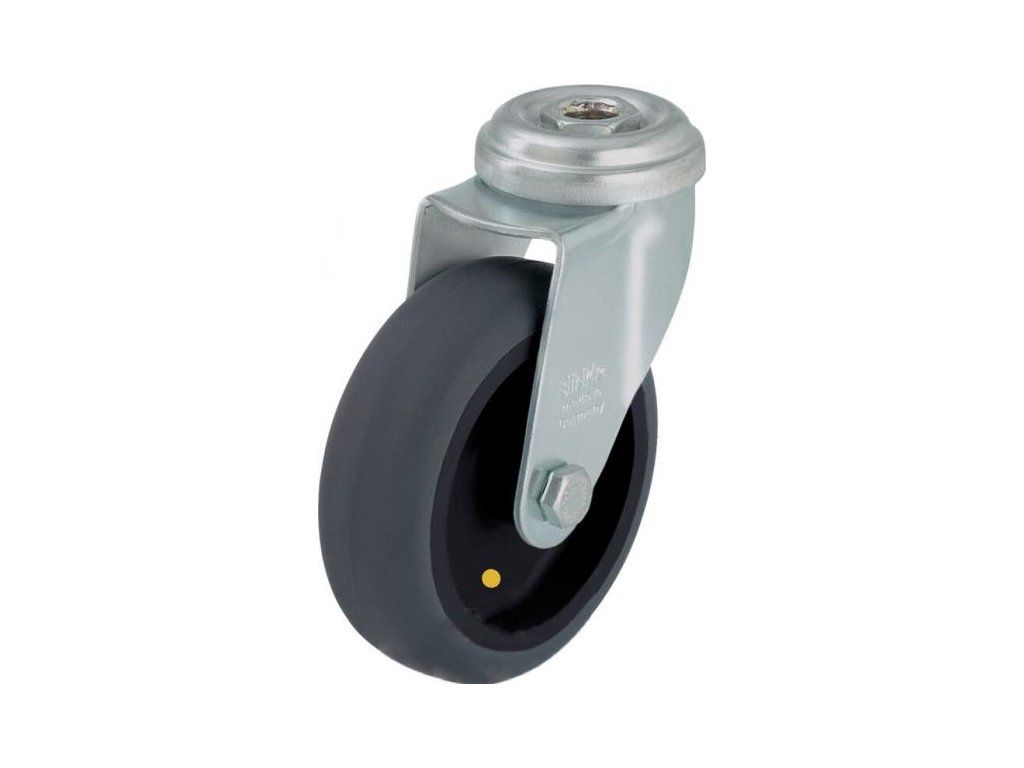

    ESD swivel castor 603.100.ELS, 100 mm

    Code: 603.100.ELS
    Kolo pro ESD zařízení s otvorem – 100 mm, nosnost 70 kg
    €15,04 / pcs €18,20 incl. VAT Measure price:
    Castor for ESD Equipment with Hole – 100 mm, 70 kg. ESD castor with hole 100 mm 70 kg.

    Detailed information

    Professional ESD services for companies — consulting, audits, measurements, employee training, and complete ESD workplace implementation according to IEC 61340-5-1.

    Product detailed description

    ESD swivel castor 603.100.ELS, 100 mm

    Castor for ESD Equipment with Hole – 100 mm, 70 kg. ESD castor with hole 100 mm 70 kg.

    Features

    • ESD castor
    • For EPA
    • Complies with EN 61340-5-1

    Use and selection

    Overall height: 121 mm. Wheel width: 25 mm.

    Compare the wheel diameter, overall height and mounting dimensions with the existing assembly. Charge dissipation also depends on the conductive connection to the frame and a suitable floor.

    Additional parameters

    Category: ESD Castor Wheels
    Color: black
    Total height [mm]: 121
    Insert depth [mm]: 33
    Cover: Steel sheet
    Load capacity: 70 kg
    Tread surface: Rubber, thermoplastic
    Design: With screw hole
    Wheel design: Swivel wheel, non-marking
    Wheel diameter [mm]: 100
    Shore hardness: 85 Shore A
    Wheel center: Polypropylene
    Wheel width [mm]: 25
    Hole size [mm]: 11
    Conductivity: conductive
    Bolt hole diameter: 11 mm
