ESD swivel castor 603.100-SF.ELS, 100 mm
Code: 603.100-SF.ELS
Product detailed description

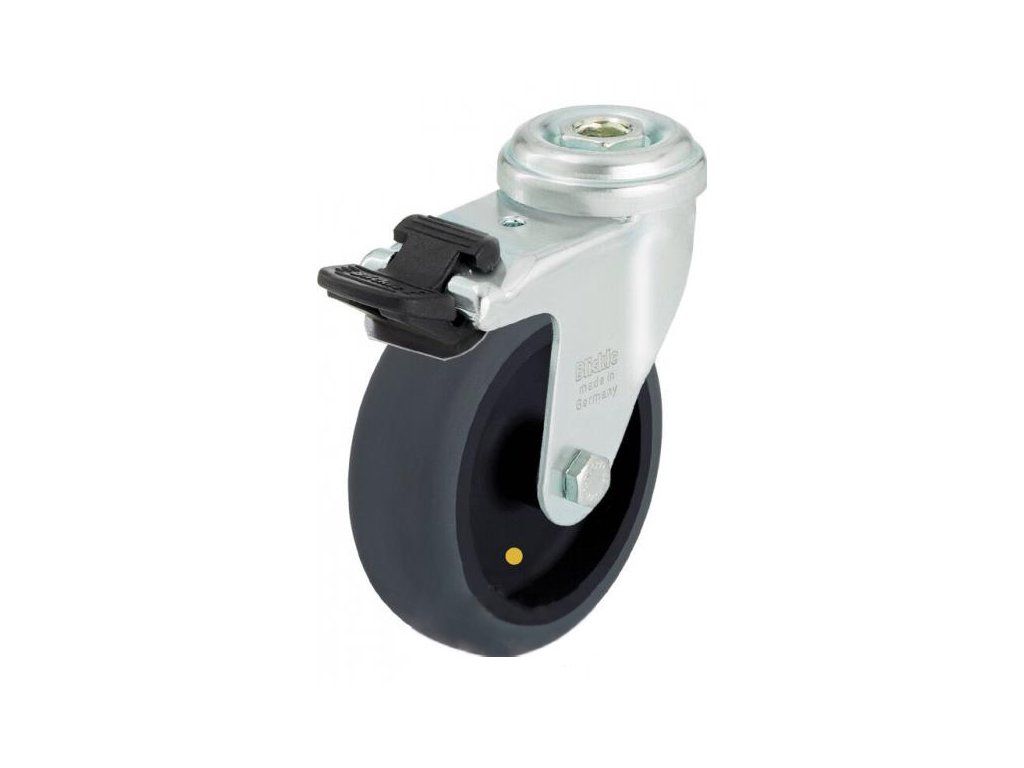

ESD swivel castor 603.100-SF.ELS, 100 mm
Castor for ESD Equipment with Hole – "stop-fix" 100 mm, 70 kg. ESD castor with hole stop-fix 100 mm 70 kg – self-locking when stopped.
Features
- ESD castor
- For EPA
- Complies with EN 61340-5-1
Use and selection
Overall height: 121 mm. Wheel width: 25 mm.
Compare the wheel diameter, overall height and mounting dimensions with the existing assembly. Charge dissipation also depends on the conductive connection to the frame and a suitable floor.
Additional parameters
| Category: | ESD Castor Wheels |
|---|---|
| Color: | black |
| Total height [mm]: | 121 |
| Insert depth [mm]: | 33 |
| Cover: | Steel sheet |
| Load capacity: | 70 kg |
| Tread surface: | Rubber, thermoplastic |
| Design: | With screw hole, with brake |
| Wheel design: | Swivel wheel, non-marking |
| Wheel diameter [mm]: | 100 |
| Shore hardness: | 85 Shore A |
| Wheel center: | Polypropylene |
| Wheel width [mm]: | 25 |
| Hole size [mm]: | 11 |
| Conductivity: | conductive |
| Bolt hole diameter: | 11 mm |
