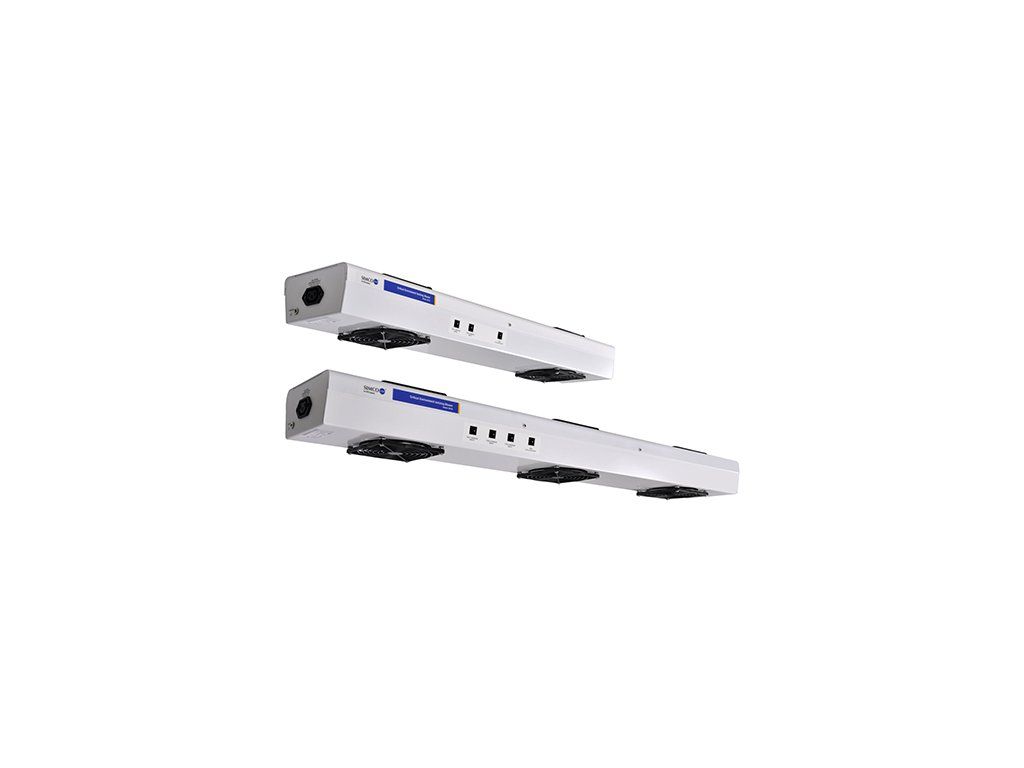

    Ionizing Fan 5810i – Overhead Model (C32X-E)

    Code: 7500.C32X-E
    Ionizační ventilátor 5810i – overhead model (C32X-E)
    €1 554,73 / pcs €1 881,22 incl. VAT Measure price:
    Ionizing Fan 5810i – Overhead Model (C32X-E). Ceiling ionizing fan 5810i model C32X-E for area neutralization above workstation.

    Detailed information

    Professional ESD services for companies — consulting, audits, measurements, employee training, and complete ESD workplace implementation according to IEC 61340-5-1.

    Product detailed description

    Ionizing Fan 5810i – Overhead Model (C32X-E)

    Ionizing Fan 5810i – Overhead Model (C32X-E). Ceiling ionizing fan 5810i model C32X-E for area neutralization above workstation. Professional Simco-Ion ionizer produces a balanced flow of positive and negative ions for static charge neutralization.

    Features

    • Professional ionization
    • For EPA workstations
    • Complies with EN 61340-5-1

    Parameters

    Ion balance±3 V (standard; ±1 V with external feedback)
    Discharge timemax. 3 s (±1000→100 V)
    Coverage610 × 1220 mm
    Number of fans2 (3 speeds, approx. 183 m³/h per fan)
    Dimensions813 × 155 × 96 mm
    Weight4,6 kg
    Power supply100–240 V AC
    Ozone concentrationmax. 0,02 ppm

    Additional parameters

    Category: ESD Ionisers — Static Neutralisation
    Length [mm]: 813
    Cable length: 2,5 m
    Charge discharge time: 3 s
    ISO: 4
    Ionization range: 610 x 1220 mm
    Width [mm]: 155
    Ambient temperature: 10 - 32 °C
    Ozone production: 0,02
    Input voltage: 100 - 240 V/AC
    Height [mm]: 96
    Ion balance +/-: +/- 3 V
