    Warmbier PGT 120 – ESD wrist strap and footwear tester

    Code: 7100.PGT120

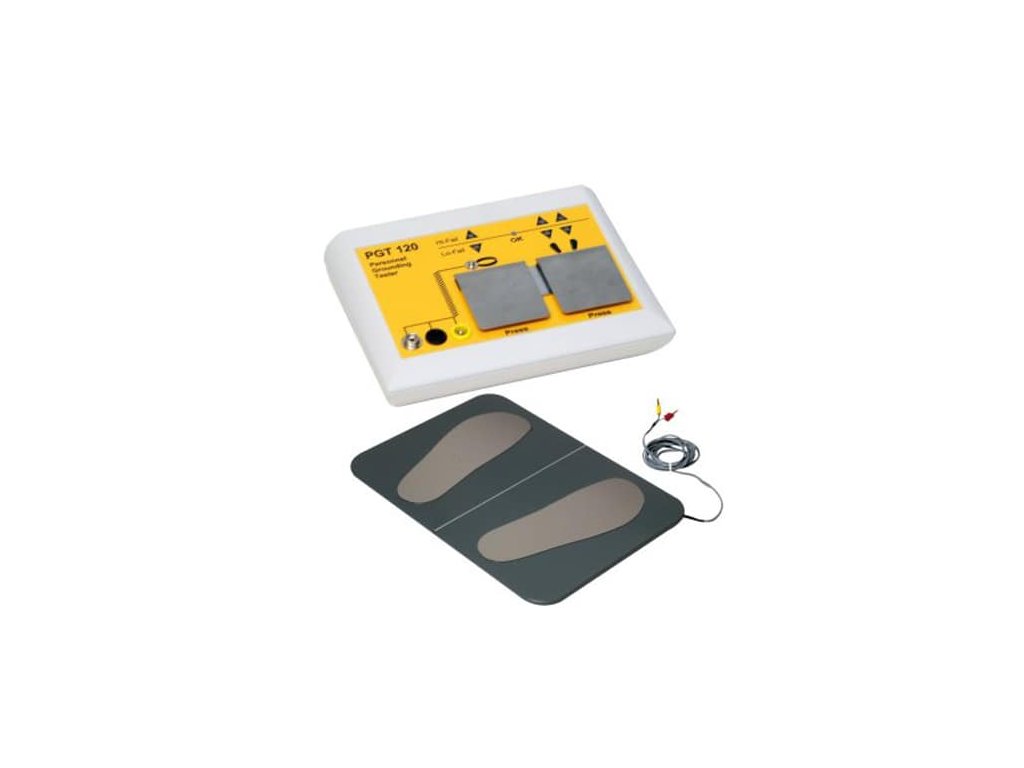

    Tester Warmbier PGT 120 s podlahovou elektrodou pro levou a pravou botu
    €602,70 / pcs €729,27 incl. VAT Measure price:
    Compact personnel grounding tester for ESD wrist straps and footwear. Fixed measuring electrodes provide simple operation, with LED indication of the result. Three independent circuits allow simultaneous testing of the wrist strap and both shoes.

    Detailed information

    Professional ESD services for companies — consulting, audits, measurements, employee training, and complete ESD workplace implementation according to IEC 61340-5-1.

    Related products

    Warmbier PGT 120.CU – kalibrační jednotka pro tester PGT 120
    Warmbier PGT 120.CU – calibration unit for the PGT 120 tester
    €128,48

    Calibration unit with reference resistors and a rotary selector for checking PASS/FAIL limits.

    7100.PGT120.CU
    Warmbier PGT 120.CU.12 – kalibrační jednotka pro testery s 12 DIP přepínači
    Warmbier PGT 120.CU.12 – calibration unit for testers with 12 DIP switches
    €117,87

    Calibration unit with reference resistors and a rotary selector for testers with 12 DIP switches: PGT 120 from serial number 10000 and PGT 120.COM from 01000.

    7100.PGT120.CU.12
    Warmbier PGT 120.SM – podložka pro podlahovou elektrodu
    Warmbier PGT 120.SM – mat for the footwear electrode
    €201,49

    Mat for positioning the footwear electrode of a PGT 120 or PGT 120.COM tester.

    7100.PGT120.SM
    Warmbier PGT 120.WK – nástěnný držák pro PGT 100 / PGT 120
    Warmbier PGT 120.WK – wall bracket for PGT 120 and PGT 120.COM
    €56,48

    Warmbier PGT 120.WK metal wall bracket for mounting a personnel grounding tester at an EPA entrance.

    7100.PGT120.WK
    Show all related products

    Product detailed description

    Warmbier PGT 120 – Personnel Grounding Tester

    The compact personal tester PGT 120 by Warmbier is designed for fast checking of grounding systems at EPA area entrances. The operator tests both the ESD wrist strap and ESD footwear – the result is shown immediately via LED indicators.

    Features

    • ESD wrist strap test – upper limit 35 MΩ
    • ESD footwear test – upper limit 100 MΩ, lower 750 kΩ
    • Fixed measuring electrode on the right side (metal)
    • LED indication: PASS (green) / FAIL (red)
    • Easy single-button operation
    • Complies with EN 61340-5-1
    • Suitable for EPA entrance and regular inspection

    Application

    We recommend placing it at the EPA area entrance, often combined with a turnstile or gate for automatic entry logging.

    Parameters

    Test limitsWrist strap / grounding cable: 750 kΩ – 35 MΩ (lower limit can be disabled per IEC 61340-5-1)
    Test voltage100 V DC, switchable to 50 V or 30 V (per IEC 61340-5-1)
    Power supply9V battery or external power supply 230 V / 12 V
    Dimensions150 × 200 × 65 mm (main unit); floor electrode for footwear 350 × 500 × 8 mm
    Weightapprox. 500 g

    Additional features and use

    Three independent measuring circuits allow the wrist strap and both shoes to be tested simultaneously. Results are indicated visually and acoustically. A dry relay contact provides a connection to an access control system.

    Additional parameters

    Category: ESD Combo Testers — Wrist & Footwear
    Measuring circuits: 3
    Relay output: dry contact
    Indication: visual and audible
    Systems tested: wrist strap, left and right shoe
