Warmbier PGT 120.SM – Measuring Mat (Frame)
Code: 7100.PGT120.SM
Product detailed description

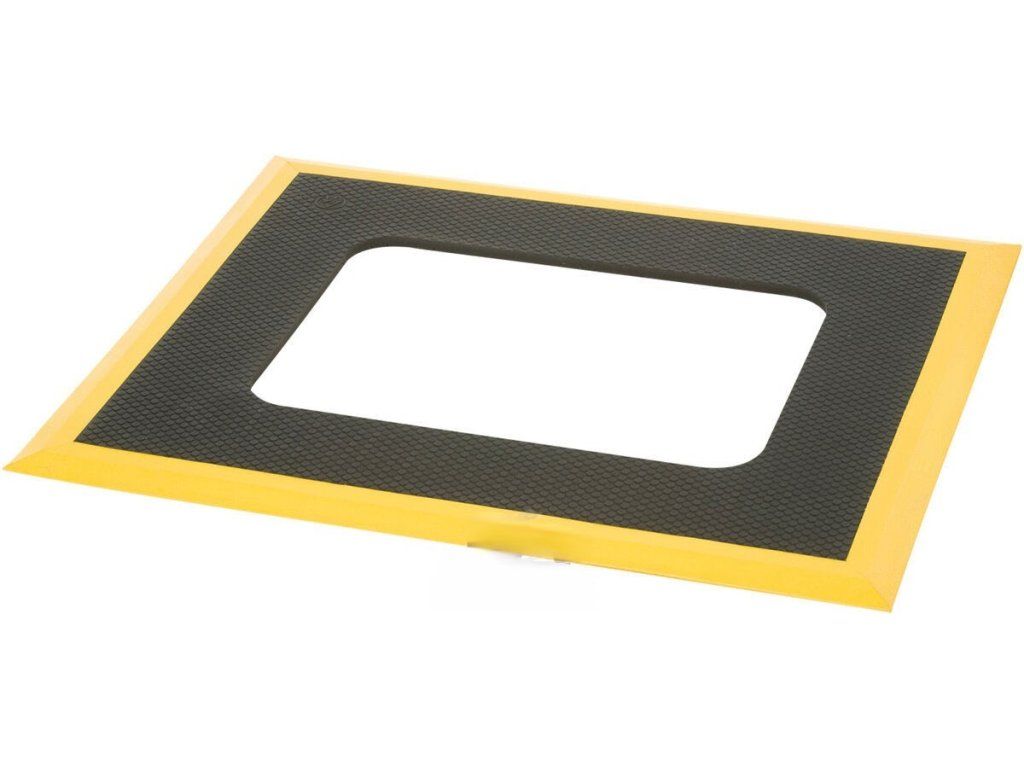

Warmbier PGT 120.SM – Measuring Mat
The measuring mat PGT 120.SM is designed to complement the PGT 120 personal tester in locations where a fixed standing area is needed. The operator steps onto the conductive surface of the mat and the tester measures the footwear grounding resistance through the mat to the measuring electrode.
Features
- Conductive mat for footwear grounding test
- Accessory for PGT 120 / PGT 120.COM tester
- Robust frame for placement on the floor
- For EPA entrance – footwear check
Additional parameters
| Category: | ESD Combo Testers — Wrist & Footwear |
|---|---|
| Height [mm]: | 13 |
| Length [mm]: | 830 |
| Width [mm]: | 680 |
