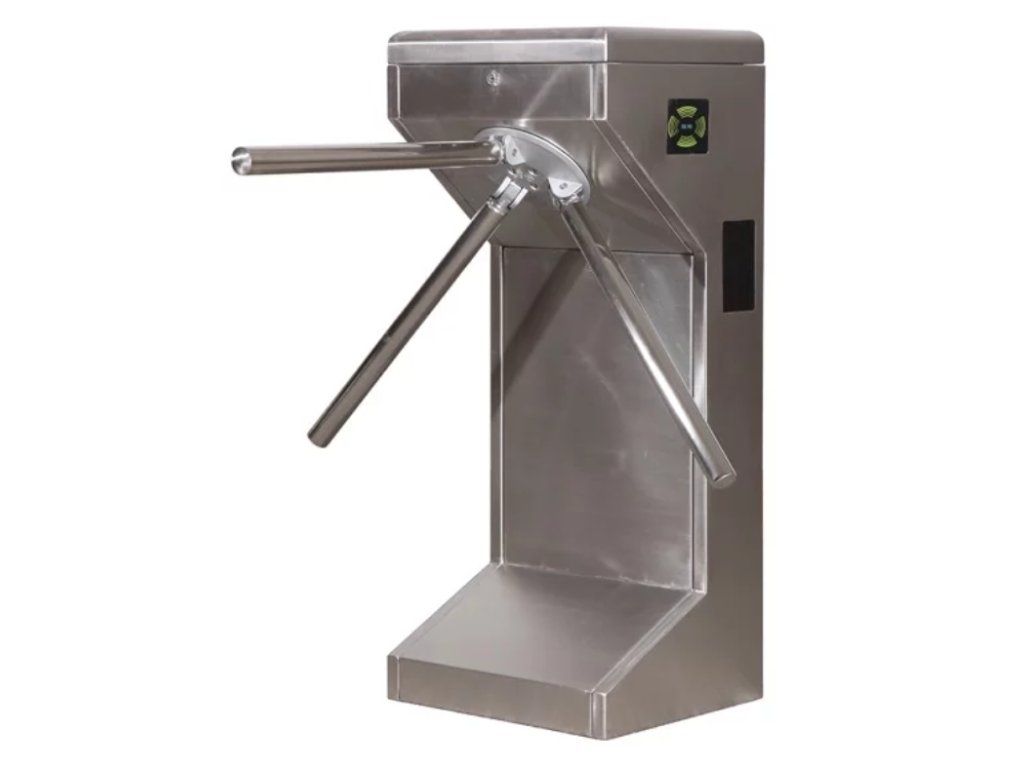

    Turnstile T06 – three-arm fully automatic turnstile

    Code: T06P
    Turnstile T06 – three-arm fully automatic turnstile
    €1 935,09 / pcs €2 341,46 incl. VAT
    Fully automatic three-arm stainless-steel turnstile for controlled entry to EPA areas, production halls and high-traffic buildings. 12 VDC motor, bi-directional passage, emergency drop-arm, compatible with ESD tester, RFID and access-control systems.

    Detailed information

    Professional ESD services for companies — consulting, audits, measurements, employee training, and complete ESD workplace implementation according to IEC 61340-5-1.

    Product detailed description

    Turnstile T06 – three-arm fully automatic turnstile

    Turnstile T06 is a fully automatic three-arm turnstile designed to control access to office buildings, sports and wellness centres, gyms, EPA (electrostatic protected) areas and production halls with high foot traffic. The stainless-steel body with automatic arm control in both directions ensures reliable and safe passage.

    Main features

    • Fully automatic mode – 12 VDC motor, open/close controller
    • Stainless steel body (SUS 304), 1.5 mm housing thickness
    • Bi-directional passage – each direction can be independently set as controlled or free
    • Emergency drop-arm – the middle arm automatically drops when the emergency button is pressed (works even without power)
    • Power failure: the arm drops; when power is restored it returns automatically
    • Visual entry signalling – red (stop) / green (go) LED indicator
    • Adjustable passage time – if the person does not pass within the set interval, the turnstile closes
    • Relay interface compatible with RFID readers, access-control systems and external buttons (e.g. reception desk)
    • Adjustable arm rotation speed
    • Throughput 20–35 persons/min

    Use in EPA areas

    The T06 turnstile can be paired with an ESD footwear/wrist-strap tester – access to the antistatic workplace opens only after a successful operator test, preventing entry of people without proper ESD equipment.

    Technical specifications

    ModelT06
    Dimensions W × D × H420 × 330 × 980 mm
    Arm length490 mm
    Weight50 kg (max column load 80 kg)
    Materialstainless steel (SUS 304), 1.5 mm
    Power supply230 V AC (±10 %), 50/60 Hz
    Motor working voltageDC 12 V
    Rated power50 W
    Input signalDC 12 V (level / pulse, ≥ 10 mA)
    Throughput20–35 persons/min
    Operating temperature−15 °C to +55 °C
    Relative humidity≤ 90 % (non-condensing)
    Operationindoor / outdoor (sheltered)

    Delivery includes

    • Turnstile T06 (body, control unit, 3 arms)
    • Signalling LED (red/green)
    • Emergency button
    • Cable harness and mounting anchors
