C245, Page 4

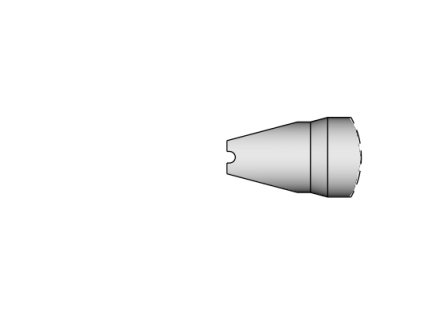

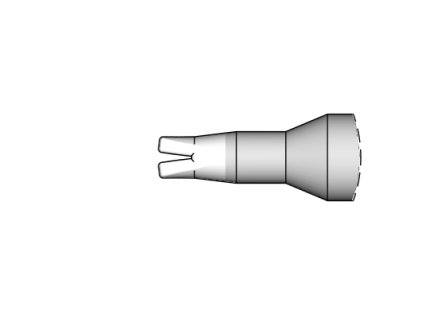

JBC C245796: drag soldering tip 2.2 × 0.75 mm. The forked design is intended for drag soldering through-hole leads. For JBC tools T245.

The reduced tinned area on the 3.8 mm bevel is intended for solder touch-up work. For JBC T245 handles.

JBC C245798: heat-staking tip for plastics Ø 8 mm. The tip transfers heat to plastic during heat staking. For JBC tools T245.

The straight 4.5 mm blade creates a continuous flat contact edge for soldering work. For JBC T245 handles.

JBC C245803: conical tip Ø 1 mm. The conical end provides point contact with an individual solder joint. For JBC tools T245, ALE250.

JBC C245804: bent conical tip Ø 1 mm. The bent end provides angled access to the joint. For JBC tools T245.

JBC C245806: chisel tip 1.2 × 0.7 mm. The flat end can contact a solder pad along its edge or across its broader face. For JBC tools T245, ALE250.

JBC C245807: chisel tip 2.2 × 1 mm. The flat end can contact a solder pad along its edge or across its broader face. For JBC tools T245, ALE250.

JBC C245808: chisel tip 4.8 × 1.5 mm. The flat end can contact a solder pad along its edge or across its broader face. For JBC tools T245.

JBC C245811: chisel tip 3.2 × 1.2 mm. The flat end can contact a solder pad along its edge or across its broader face. For JBC tools T245.

JBC C245812: bevel tip Ø 3 mm. The bevel provides a contact face for soldering with the handle held at an angle. For JBC tools T245.

JBC C245844: chisel tip 1.8 × 0.8 mm. The flat end can contact a solder pad along its edge or across its broader face. For JBC tools T245.

JBC C245845: bevel tip Ø 2.2 mm. The bevel provides a contact face for soldering with the handle held at an angle. For JBC tools T245, ALE250.

JBC C245846: bent chisel tip 2.2 × 1 mm. The bent chisel combines a flat contact with angled access to the joint. For JBC tools T245.

JBC C245862: bent chisel tip 1.2 × 0.7 mm. The bent chisel combines a flat contact with angled access to the joint. For JBC tools T245.

JBC C245863: bent chisel tip 1.8 × 0.8 mm. The bent chisel combines a flat contact with angled access to the joint. For JBC tools T245.

JBC C245866: chisel tip 6.6 × 1.8 mm. The flat end can contact a solder pad along its edge or across its broader face. For JBC tools T245.

JBC C245875: chisel tip 3.2 × 1.2 mm. The flat end can contact a solder pad along its edge or across its broader face. For JBC tools T245.

The 1 mm conical end provides a standard straight geometry for general soldering. Match the diameter to the joint contact area. For JBC T245 handles.

This bent 1 mm model provides a conical contact end for reaching joints away from the tool axis. For JBC T245 handles.

The 1.5 mm bevel presents an angled face to the joint. This model carries no HT designation. For JBC T245 handles.

This straight 1.2 × 0.7 mm chisel is a general-purpose model for joints needing a flat contact edge of this size. For JBC T245 handles.

The 2.2 × 1 mm chisel has a straight end for flat contact. C245407 offers an HT version at these dimensions. For JBC T245 handles.

The 4.8 × 1.5 mm HT chisel provides broad flat contact with optimized thermal geometry. For JBC T245 handles.

JBC C245909E: bent conical tip Ø 1 mm. The bent end provides angled access to the joint. For JBC tools T245.

The chisel has a broad tinned area. The manufacturer classifies it as a model with optimized thermal geometry. For JBC T245 handles.

The 3 mm diameter and bevelled face provide a broader working end than the fine bevel models in the C245 range. For JBC T245 handles.

The 21 mm blade provides a very broad continuous contact edge. Allow space for the complete working end when selecting it. For JBC T245 handles.

The straight 10 mm blade has a transversely widened end for contact along a continuous edge. For JBC T245 handles.

The fine bent end has a 0.6 mm diameter and provides an angled approach where surrounding components restrict straight access. For JBC T245 handles.

The straight conical end has a 0.5 mm diameter for fine contact along the tool axis. For JBC T245 handles.

The 2.7 mm Mini Spoon end combines an oval working face with a recess. For JBC T245 handles.

The 2.2 mm conical end has a straight rounded profile for general soldering with a larger contact tip. For JBC T245 handles.

The bent 0.8 mm conical tip provides angled access with a narrow rounded end. For JBC T245 handles.

The 0.6 mm conical end is part of an HT design, combining fine contact with optimized heat transfer. For JBC T245 handles.

The 3.8 mm spoon end has a larger oval recessed working face than the fine Mini Spoon models. For JBC T245 handles.

JBC C245939: knife tip 6 × 0.4 mm. The knife profile combines a narrow edge with an elongated soldering face. For JBC tools T245.

JBC C245940: knife tip 6 × 3 mm. The knife profile combines a narrow edge with an elongated soldering face. For JBC tools T245.

The knife end has a sharp edge and measures 6 × 1 mm. The drawing shows the blade orientation. For JBC T245 handles.

The straight 1.7 mm conical end provides a larger contact tip than fine models below 1 mm. For JBC T245 handles.

The straight 1.8 × 0.8 mm chisel provides a flat working end and is thicker than C245171 at the same width. For JBC T245 handles.

The angled face at the 2.2 mm end provides bevel contact for general soldering work. For JBC T245 handles.

The flat 2.2 × 1 mm working end is bent, combining a wider contact edge with an angled approach. For JBC T245 handles.

JBC C245949: blade tip 32 mm. The broad blade provides contact along an extended soldering area. For JBC tools T245.

The 3.8 mm bevel uses HT geometry for joints with greater heat-transfer requirements. For JBC T245 handles.

JBC C245952E: bevel tip Ø 3.8 mm. The bevel provides a contact face for soldering with the handle held at an angle. For JBC tools T245.

JBC C245955: knife tip 13 × 0.5 mm. The knife profile combines a narrow edge with an elongated soldering face. For JBC tools T245.

The straight 0.8 mm conical tip is wider than C245001 while retaining a narrow rounded end. For JBC T245 handles.

This bent chisel combines a 1.2 × 0.7 mm end with an angled approach to the joint. For JBC T245 handles.

The 1.8 × 0.8 mm bent chisel has a wider working end than C245962 while retaining an angled approach. For JBC T245 handles.
